Rodamiento de rodillos cónicos Timken 33287-90066, Diámetro exterior: 117.602 mm | Diámetro interior: 73.152 mm | Anchura: 66.802 mm

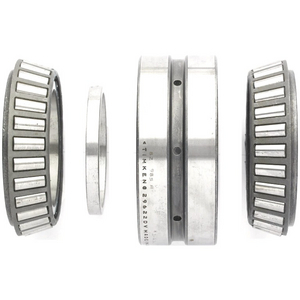

Tapered Roller Bearing Double Cup Assembly
Ver información técnicaReferencias
Timken:33287-90066
Rubix:503328750001
EAN:0053893263281
Resumen técnico
| Diámetro interior | 73.152 mm |
|---|---|
| Diámetro exterior | 117.602 mm |
| Anchura | 66.802 mm |
Detalles de producto : 33287 ASSY 90066
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Cualidades
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Aplicaciones
Heavy-duty gear drives; Various industrial configurations
Información técnica
Atributos
| Dimensiones logísticas (lar. x an. x al.) | 66,802x117,602x117,602 mm |
|---|---|
| Peso neto | 2537 g |
| Dimensiones del embalaje (lar. x an. x al.) | 65,1256x136,6012x136,6012 mm |
| Diámetro interior | 73.152 mm |
| Diámetro exterior | 117.602 mm |
| Anchura | 66.802 mm |
| Peso | 2.54 kg |
| Serie | 33000 |
| Anchura de rodamiento total | 66.802 mm |
| Norma | iso 355 |
| Carga estática básica, radial - C0r | 197000 N |
| Carga dinámica básica, radial - Cr | 138000 N |
Mostrar UNSPSC/ECL@SS/Customs
4083,21 € Sin IVA
/ unidad
4940,68 € IVA incluido
- Entrega estimada (15) días
