Referencias
SMC:CXSJL20-10
Rubix:799254406000
fabricante:00400175
EAN:3618035661447
Resumen técnico
| Tipo | dual rod cylinder |
|---|---|
| Diámetro de cilindro | 20 mm |
| Carrera de cilindro | 10 mm |
Documentos

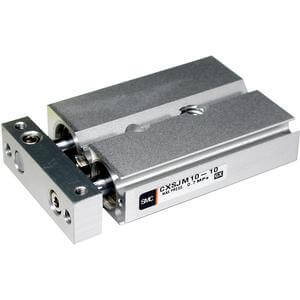

Detalles de producto : CXSJL20-10
Series CXS is available in six bore sizes and stroke lengths up to 100mm. This series is very compact and has a very accurate non-rotating specification. It is suited for accurate pick-and-place applications or light duty material handling. The CXS can be used with either reed or solid state switches. Available in clean room versions.
Cualidades
Dual rod cylinder, compact type
Slide bearing or ball bushing bearing
Bore size (mm): 6, 10, 15, 20, 25, 32
Standard strokes (mm): 10, 20, 30, 40, 50, 75, 100
Auto switches available
Made to Order additionally released.
Información técnica
Atributos
| Tipo | dual rod cylinder |
|---|---|
| Diámetro de cilindro | 20 mm |
| Carrera de cilindro | 10 mm |
| Temperatura mín. | -10 °C |
| Temperatura máx. | 60 °C |
| Tamaño de diseño | 20 |
Mostrar UNSPSC/ECL@SS/Customs
318,42 € Sin IVA
/ unidad
385,29 € IVA incluido
- Entrega estimada (15) días
