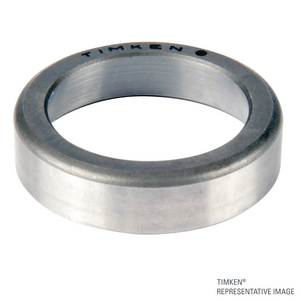

Rodamiento de rodillos cónicos Timken JLM506810, Diámetro exterior: 90 mm | Anchura: 18.5 mm
Tapered Roller Bearings
Ver información técnicaReferencias
Timken:JLM506810
Rubix:550681000001
fabricante:100087068
EAN:0053893626123
Resumen técnico
| Diámetro interior | 55 mm |
|---|---|
| Diámetro exterior | 90 mm |
| Anchura | 18.5 mm |
Detalles de producto : JLM 506810 @
Timken is the recognized world leader in tapered roller bearings with the most extensive offering in the market. This is the basic and the most widely used type of tapered roller bearing. It consists of the inner-ring assembly and the outer ring. It is usually fitted as one of an opposing pair. During equipment assembly, single-row bearings can be “set” to the required clearance (endplay) or preload condition to optimize performance.
Cualidades
Single-row tapered roller bearings have positive roller alignment that ensures true rolling motion and generates a “seating force” that pushes the roller against the cone large rib. This seating force prevents the rollers from skewing off apex, thereby keeping them positively aligned and located against the cone large rib.
Aplicaciones
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Información técnica
Atributos
| Dimensiones logísticas (lar. x an. x al.) | 104x104x35 mm |
|---|---|
| Peso neto | 180 g |
| Dimensiones del embalaje (lar. x an. x al.) | 103,632x103,632x34,544 mm |
| Peso con embalaje | 181,9 g |
| Diámetro interior | 55 mm |
| Diámetro exterior | 90 mm |
| Anchura | 18.5 mm |
| Holgura del rodamiento | cn |
| Peso | 0.5 kg |
| Serie | lm506800 |
| Anchura de rodamiento total | 23 mm |
| Norma | iso 355 |
| Carga estática básica, radial - C0r | 123000 N |
| Carga dinámica básica, radial - Cr | 91800 N |
Mostrar UNSPSC/ECL@SS/Customs
37,38 € Sin IVA
/ unidad
45,23 € IVA incluido
- Entrega estimada (15) días
