Rodamiento de rodillos cónicos Timken 749A-90070, Diámetro exterior: 155.575 mm | Diámetro interior: 82.55 mm | Anchura: 101.6 mm

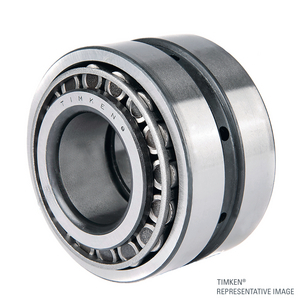

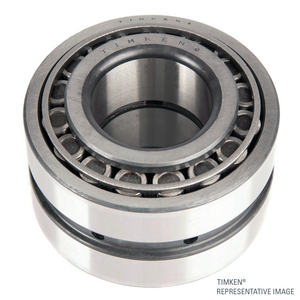

Tapered Roller Bearing Double Cup Assembly
Ver información técnicaReferencias
Timken:749A-90070
Rubix:798567277000
fabricante:100084940
EAN:0053893082745
Resumen técnico
| Diámetro interior | 82.55 mm |
|---|---|
| Diámetro exterior | 155.575 mm |
| Anchura | 101.6 mm |
Detalles de producto : 749A-90070
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Cualidades
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Aplicaciones
Heavy-duty gear drives; Various industrial configurations
Información técnica
Atributos
| Dimensiones logísticas (lar. x an. x al.) | 101,6x155,575x155,575 mm |
|---|---|
| Peso neto | 8016 g |
| Dimensiones del embalaje (lar. x an. x al.) | 107,95x171,45x171,45 mm |
| Peso con embalaje | 8016,3 g |
| Diámetro interior | 82.55 mm |
| Diámetro exterior | 155.575 mm |
| Anchura | 101.6 mm |
| Holgura del rodamiento | cn |
Mostrar UNSPSC/ECL@SS/Customs
1768,38 € Sin IVA
/ unidad
2139,74 € IVA incluido
- Entrega estimada (15) días
