Referencias
Festo:HGPT-35-A-B-F
Rubix:798196297000
EAN:4052568206789
Resumen técnico
| Tipo | pinza ser.paral hgpt-35-a-b-f |
|---|---|
| Carrera de cilindro | 4 mm |
Documentos

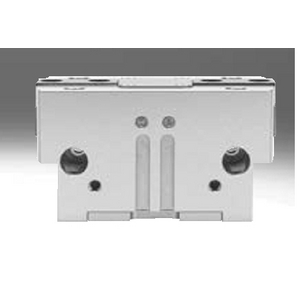

Detalles de producto : HGPT-35-A-B-F
Sturdy and precise kinematics for maximum torque resistance and long service Life. The force generated by the linear motion is translated into the gripper jaw movement via a wedge mechanism with force-guided motion sequence. This also guarantees synchronous movement of the gripper jaws. The virtually backlash-free plain-bearing guide is realised using ground in gripper jaws
pinza de sujeción paralela HGPT-35-A-B-F variante robusta gran fuerza.. Taille=35, Course par mors de pince=4 mm, Précision d'échange max.=<= 0,2 mm, Jeu angulaire max. des mors de pince ax, ay=<= 0,1 deg, Jeu max. des mors de pince Sz=<= 0,02 mm
Cualidades
Space-optimised:Choice of shorter housing without gripping force retention or longer housing with gripping force retention
Increased gripping force/ high-force variant:Gripping force increased by 30% by means of oval piston. High-force variant: half the stroke, twice the force
Reduced weight:Systematic use of lighter and higher performance materials
4 sensor slots:Proximity sensors no longer project past the bottom of the housing. Up to 4 positions can be sensed using the proximity sensors
Increased gripping force/ high-force variant:Gripping force increased by 30% by means of oval piston. High-force variant: half the stroke, twice the force
Reduced weight:Systematic use of lighter and higher performance materials
4 sensor slots:Proximity sensors no longer project past the bottom of the housing. Up to 4 positions can be sensed using the proximity sensors
Aplicaciones
Can be used as a double-acting and single-acting gripper;Compression spring for supplementing or retaining the gripping forces;Suitable for external and internal gripping;Centering either via Centering pins or Centering sleeves
Información técnica
Atributos
| Tipo | pinza ser.paral hgpt-35-a-b-f |
|---|---|
| Carrera de cilindro | 4 mm |
| Temperatura mín. | 5 °C |
| Temperatura máx. | 60 °C |
Mostrar UNSPSC/ECL@SS/Customs
747,95 € Sin IVA
/ unidad
905,02 € IVA incluido
- Entrega estimada (15) días
