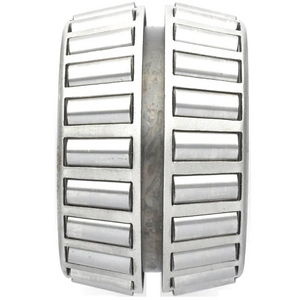

Rodamiento de rodillos cónicos Timken 868D, Diámetro exterior: 200.025 mm | Diámetro interior: 101.6 mm | Anchura: 127 mm
Tapered Roller Double Row Cone
Ver información técnicaReferencias
Timken:868D
Rubix:798615341000
EAN:0053893097954
Resumen técnico
| Diámetro interior | 101.6 mm |
|---|---|
| Diámetro exterior | 200.025 mm |
| Anchura | 127 mm |
Detalles de producto : 868 D
TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
Cualidades
Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit
Aplicaciones
Gear reduction units; Calendar rolls; Industrial machinery
Información técnica
Atributos
| Dimensiones logísticas (lar. x an. x al.) | 127x139,446x139,446 mm |
|---|---|
| Peso neto | 8050 g |
| Dimensiones del embalaje (lar. x an. x al.) | 196,85x130,302x196,85 mm |
| Diámetro interior | 101.6 mm |
| Diámetro exterior | 200.025 mm |
| Anchura | 127 mm |
| Peso | 16.8 kg |
| Serie | 855 |
| Anchura de rodamiento total | 126.997 mm |
| Carga estática básica, radial - C0r | 630000 N |
| Carga dinámica básica, radial - Cr | 797000 N |
Mostrar UNSPSC/ECL@SS/Customs
21.664,64 € Sin IVA
/ unidad
26.214,21 € IVA incluido
- Entrega estimada (15) días
