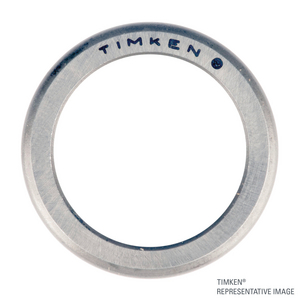

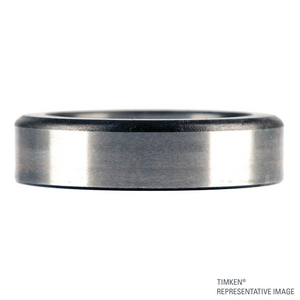

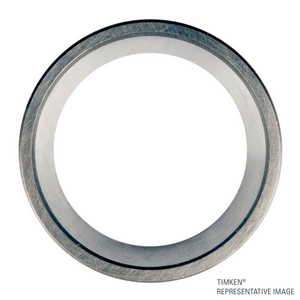

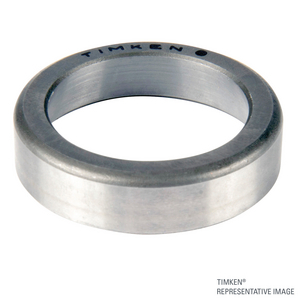

Rodamiento de rodillos cónicos Timken HM907614, Diámetro exterior: 111.125 mm | Diámetro interior: 50.8 mm | Anchura: 20.638 mm
Tapered Roller Bearings
Ver información técnicaReferencias
Timken:HM907614
Rubix:590761400001
fabricante:100060855
EAN:0053893705088
Resumen técnico
| Diámetro interior | 50.8 mm |
|---|---|
| Diámetro exterior | 111.125 mm |
| Anchura | 20.638 mm |
Detalles de producto : HM 907614 @
Timken is the recognized world leader in tapered roller bearings with the most extensive offering in the market. This is the basic and the most widely used type of tapered roller bearing. It consists of the inner-ring assembly and the outer ring. It is usually fitted as one of an opposing pair. During equipment assembly, single-row bearings can be “set” to the required clearance (endplay) or preload condition to optimize performance.
Cualidades
Single-row tapered roller bearings have positive roller alignment that ensures true rolling motion and generates a “seating force” that pushes the roller against the cone large rib. This seating force prevents the rollers from skewing off apex, thereby keeping them positively aligned and located against the cone large rib.
Aplicaciones
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Información técnica
Atributos
| Dimensiones logísticas (lar. x an. x al.) | 120x33x119 mm |
|---|---|
| Peso neto | 500 g |
| Dimensiones del embalaje (lar. x an. x al.) | 117,602x117,602x31,75 mm |
| Peso con embalaje | 499,9 g |
| Diámetro interior | 50.8 mm |
| Diámetro exterior | 111.125 mm |
| Anchura | 20.638 mm |
| Holgura del rodamiento | cn |
| Peso | 1.3 kg |
| Serie | hm907600 |
| Anchura de rodamiento total | 30.163 mm |
| Carga estática básica, radial - C0r | 153000 N |
| Carga dinámica básica, radial - Cr | 123000 N |
Mostrar UNSPSC/ECL@SS/Customs
156,92 € Sin IVA
/ unidad
189,87 € IVA incluido
- Entrega estimada (15) días
