Rodamiento de rodillos cónicos Timken 18337, Diámetro exterior: 85.725 mm | Anchura: 12.7 mm

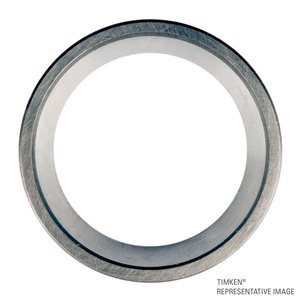

Tapered Roller Bearing Cup
Ver información técnicaReferencias
Timken:18337
Rubix:501833700001
fabricante:100051727
EAN:0053893195544
Resumen técnico
| Diámetro interior | 82 mm |
|---|---|
| Diámetro exterior | 85.725 mm |
| Anchura | 12.7 mm |
Detalles de producto : 18337
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
Cualidades
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Aplicaciones
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Información técnica
Atributos
| Dimensiones logísticas (lar. x an. x al.) | 12,7x85,725x85,725 mm |
|---|---|
| Peso neto | 126 g |
| Dimensiones del embalaje (lar. x an. x al.) | 95,758x95,758x26,67 mm |
| Peso con embalaje | 125,6 g |
| Diámetro interior | 82 mm |
| Diámetro exterior | 85.725 mm |
| Anchura | 12.7 mm |
| Holgura del rodamiento | cn |
| Peso | 0.4 kg |
| Serie | 18000 |
Mostrar UNSPSC/ECL@SS/Customs
58,65 € Sin IVA
/ unidad
70,97 € IVA incluido
- Entrega estimada (15) días
