Rodamiento de rodillos cónicos Timken HM905843/HM905810, Diámetro exterior: 104.986 mm | Diámetro interior: 44.988 mm | Anchura: 32.512 mm
Timken Tapered Roller Bearing HM
Ver información técnicaReferencias
Timken:HM905843/HM905810
Rubix:798083608000
EAN:0053893663425
Resumen técnico
| Diámetro interior | 44.988 mm |
|---|---|
| Diámetro exterior | 104.986 mm |
| Anchura | 32.512 mm |
Detalles de producto : HM 905843/HM 905810 ASSY 99401
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.

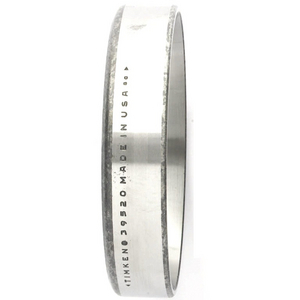

This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
This cup (outer ring) will need to be purchased with a matching cone (inner ring/cage/rollers).
Cualidades
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Aplicaciones
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Información técnica
Atributos
| Dimensiones logísticas (lar. x an. x al.) | 23,368x104,902x104,902 mm |
|---|---|
| Peso neto | 491 g |
| Dimensiones del embalaje (lar. x an. x al.) | 39,7256x116,0272x116,0272 mm |
| Diámetro interior | 44.988 mm |
| Diámetro exterior | 104.986 mm |
| Anchura | 32.512 mm |
| Holgura del rodamiento | cn |
| Serie | hm |
| Material | steel |
| Jaula | acero |
| Carga estática básica, radial - C0r | 171000 N |
| Carga dinámica básica, radial - Cr | 135000 N |
Mostrar UNSPSC/ECL@SS/Customs
334,39 € Sin IVA
/ unidad
404,61 € IVA incluido
- Entrega estimada (15) días
