Rodamiento de rodillos cónicos Timken 27687/27620, Diámetro exterior: 125.413 mm | Diámetro interior: 82.55 mm | Anchura: 25.4 mm

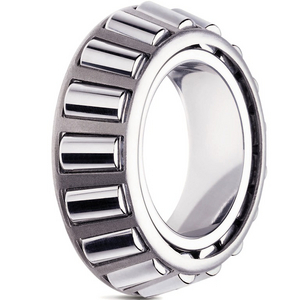

Tapered Roller Bearing Cone
Ver información técnicaReferencias
Timken:27687/27620
Rubix:798866295000
EAN:0053893654973
Resumen técnico
| Diámetro interior | 82.55 mm |
|---|---|
| Diámetro exterior | 125.413 mm |
| Anchura | 25.4 mm |
Detalles de producto : 27687/27620
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Cualidades
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Aplicaciones
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Información técnica
Atributos
| Dimensiones logísticas (lar. x an. x al.) | 25,4x104,521x104,521 mm |
|---|---|
| Peso neto | 708 g |
| Dimensiones del embalaje (lar. x an. x al.) | 34,544x133,858x133,858 mm |
| Diámetro interior | 82.55 mm |
| Diámetro exterior | 125.413 mm |
| Anchura | 25.4 mm |
| Peso | 1.1 kg |
| Serie | 27600 |
| Material | steel |
| Jaula | acero |
| Velocidad de referencia | 2800 rpm |
| Velocidad límite | 3600 rpm |
| Anchura de rodamiento total | 25.4 mm |
| Norma | iso 355 |
| Carga estática básica, radial - C0r | 178000 N |
| Carga dinámica básica, radial - Cr | 117000 N |
Mostrar UNSPSC/ECL@SS/Customs
216,94 € Sin IVA
/ unidad
262,50 € IVA incluido
- Entrega estimada (15) días
