Rodamiento de rodillos cónicos Timken 25580/25521, Diámetro exterior: 83.058 mm | Diámetro interior: 44.45 mm | Anchura: 25.4 mm

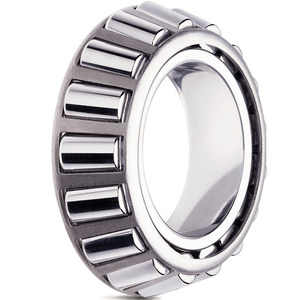

Tapered Roller Bearing Cone
Ver información técnicaReferencias
Timken:25580/25521
Rubix:798927389000
EAN:0053893654720
Resumen técnico
| Diámetro interior | 44.45 mm |
|---|---|
| Diámetro exterior | 83.058 mm |
| Anchura | 25.4 mm |
Detalles de producto : 25580/25521
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Cualidades
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Aplicaciones
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Información técnica
Atributos
| Dimensiones logísticas (lar. x an. x al.) | 25,4x62,682x62,682 mm |
|---|---|
| Peso neto | 351 g |
| Dimensiones del embalaje (lar. x an. x al.) | 33,3756x85,8012x85,8012 mm |
| Diámetro interior | 44.45 mm |
| Diámetro exterior | 83.058 mm |
| Anchura | 25.4 mm |
| Peso | 0.55 kg |
| Serie | 25500 |
| Material | low-alloy carbon-chromium bearing steel (type 52100, acc. to astm a295) |
| Jaula | acero |
| Velocidad de referencia | 4500 rpm |
| Velocidad límite | 6000 rpm |
| Anchura de rodamiento total | 23.813 mm |
| Norma | abma inch part numbering system (international standard for inch-sized tapered roller bearings) |
| Carga estática básica, radial - C0r | 111000 N |
| Carga dinámica básica, radial - Cr | 90500 N |
Mostrar UNSPSC/ECL@SS/Customs
85,05 € Sin IVA
/ unidad
102,91 € IVA incluido
- Entrega estimada (15) días
