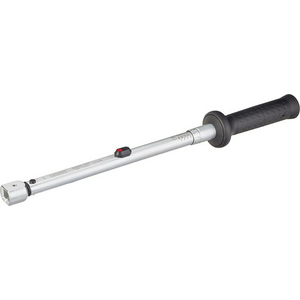

LLAVE DINAMOMETRICA 6292-1CT 40-200NM 14X18 MM

•Plug-and-socket connection to hold insert tools
Accuracy ± 2 % of scale value (in direction of actuation)
In safe box
DIN EN ISO 6789-2:2017
Output: Insert square 14 x 18 mm
Dimensions / length: 401 mm
Net weight: 0.9 kg
Nm min-max: 20 – 120 Nm
Tolerance: 2 %
Scale Graduation (Nm): 1 Nm
Effective torque wrench length min.-max. I1 mm: 368.30 – 354.20 Nm
Actuating force min.-max. kg: 5.5 – 34.5 kg
Inside micrometre of the adjusting tool l2: 38.5 mm
Head Thickness a: 23 mm
Head Width b: 30 mm
No turning back: continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have been able to demonstrate that turning them back to the smallest scale value is no longer required
