Referencias
Mitutoyo:128-101
Rubix:849221133053
EAN:4946368016245
Resumen técnico
| Rango de medición, mínimo | 0 mm |
|---|---|
| Rango de medición, máximo | 25 mm |
| Diámetro de varilla de medición | 4 mm |
Documentos

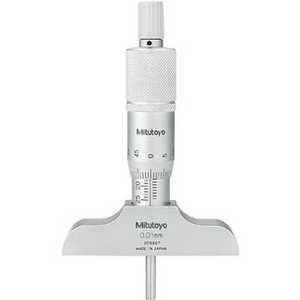

Detalles de producto : MICROMETRO MITUTOYO 128-101
This micrometer allows you to measure depth and offers you the following features:
ø4mm measuring rod.
Ratchet stop provides you with constant measuring force.
Measuring rod lock.
Carbide-tipped measuring rod model is available.
Cualidades
The ratchet provides a constant measuring force.
Aplicaciones
Series 128 - Fixed-stem model Technical specifications: Micrometer screw capacity: 25 mm Drum revolution: 0.5 mm, with spindle lock Accuracy (excluding counting error): ±3 'm (0-25 mm) Graduations: Thimble and sleeve graduated, matte chrome-plated, ø 18 mm Flatness of the base: 1.3 'm (for 63.5 mm), 2 'm (for 101.6 mm) Flatness of the stem: 0.3 'm Parallelism between the base and the stem: (4+L/50) 'm L = maximum measuring length (mm) Measuring surface: carbide, ground, finely lapped Base: Treated steel Measuring force: 5-10 N Reading: 0.01 mm Supplied: Case, box or packaging
Información técnica
Atributos
| Rango de medición, mínimo | 0 mm |
|---|---|
| Rango de medición, máximo | 25 mm |
| Diámetro de varilla de medición | 4 mm |
| Número de varillas de medición | 1 |
| Caja | si |
| Graduación | 0.01 mm |
Mostrar UNSPSC/ECL@SS/Customs
174,00 € Sin IVA
/ unidad
210,54 € IVA incluido
- Entrega estimada (15) días
