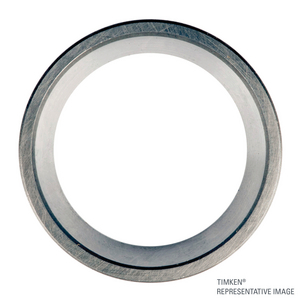

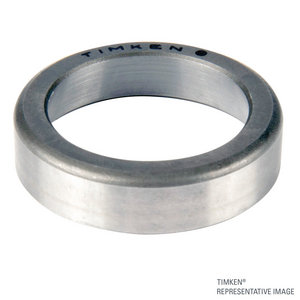

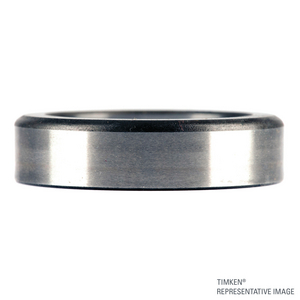

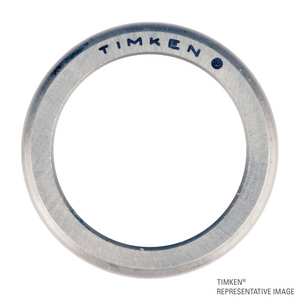

Rodamiento de rodillos cónicos Timken 56650, Diámetro exterior: 165.1 mm | Diámetro interior: 106.363 mm | Anchura: 36.513 mm
Tapered Roller Bearings
Ver información técnicaVer documentosReferencias
Timken:56650
Rubix:505665000001
fabricante:100110391
EAN:0053893338590
Resumen técnico
| Diámetro interior | 106.363 mm |
|---|---|
| Diámetro exterior | 165.1 mm |
| Anchura | 36.513 mm |
Documentos
Detalles de producto : 56650 @
Timken is the recognized world leader in tapered roller bearings with the most extensive offering in the market. This is the basic and the most widely used type of tapered roller bearing. It consists of the inner-ring assembly and the outer ring. It is usually fitted as one of an opposing pair. During equipment assembly, single-row bearings can be “set” to the required clearance (endplay) or preload condition to optimize performance.
Cualidades
Single-row tapered roller bearings have positive roller alignment that ensures true rolling motion and generates a “seating force” that pushes the roller against the cone large rib. This seating force prevents the rollers from skewing off apex, thereby keeping them positively aligned and located against the cone large rib.
Aplicaciones
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Información técnica
Atributos
| Dimensiones logísticas (lar. x an. x al.) | 161x161x50 mm |
|---|---|
| Peso neto | 850 g |
| Dimensiones del embalaje (lar. x an. x al.) | 160,782x160,782x49,53 mm |
| Peso con embalaje | 845 g |
| Diámetro interior | 106.363 mm |
| Diámetro exterior | 165.1 mm |
| Anchura | 36.513 mm |
| Holgura del rodamiento | cn |
| Serie | 56650 |
| Jaula | acero |
| Anchura de rodamiento total | 36.513 mm |
| Carga estática básica, radial - C0r | 355000 N |
| Carga dinámica básica, radial - Cr | 50000 N |
Mostrar UNSPSC/ECL@SS/Customs
110,80 € Sin IVA
/ unidad
134,07 € IVA incluido
- Entrega estimada (15) días
