Rodamiento de rodillos cónicos Timken HM617049/HM617010, Diámetro exterior: 142.138 mm | Diámetro interior: 85.725 mm | Anchura: 42.863 mm

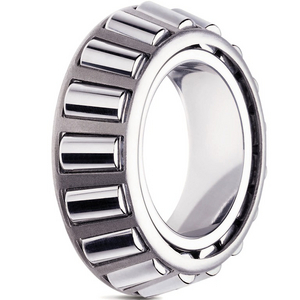

Tapered Roller Bearing Cone
Ver información técnicaReferencias
Timken:HM617049/HM617010
Rubix:799033509000
EAN:0053893662060
Resumen técnico
| Diámetro interior | 85.725 mm |
|---|---|
| Diámetro exterior | 142.138 mm |
| Anchura | 42.863 mm |
Detalles de producto : HM617049/HM617010
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
This cone will need to be purchased with a matching cup.
This cone will need to be purchased with a matching cup.
Cualidades
Single cone. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available.
Aplicaciones
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Información técnica
Atributos
| Dimensiones logísticas (lar. x an. x al.) | 42,863x115,189x115,189 mm |
|---|---|
| Peso neto | 1741 g |
| Dimensiones del embalaje (lar. x an. x al.) | 49,022x141,732x141,732 mm |
| Diámetro interior | 85.725 mm |
| Diámetro exterior | 142.138 mm |
| Anchura | 42.863 mm |
| Peso | 2.6 kg |
| Serie | hm617000 |
| Material | steel |
| Jaula | acero |
| Velocidad de referencia | 3500 rpm |
| Velocidad límite | 4700 rpm |
| Anchura de rodamiento total | 42.863 mm |
| Norma | abma (inch tapered roller bearing part numbering system) |
| Carga estática básica, radial - C0r | 399000 N |
| Carga dinámica básica, radial - Cr | 261000 N |
