CDQMB80TF-60
C(D)QM (ø40 to ø100), Compact Cylinder, Guide Rod Type
Ver información técnicaVer documentosReferencias
SMC:CDQMB80TF-60
Rubix:799253754000
fabricante:CDQMB80TF-60
Resumen técnico
| Tipo | compact cylinder |
|---|---|
| Diámetro de cilindro | 80 mm |
| Carrera de cilindro | 60 mm |
Documentos
Detalles de producto : CDQMB80TF-60

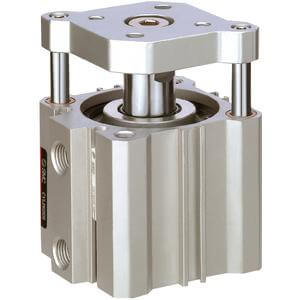

The CQM is a compact cylinder integrated with a guide rod and plate. The series is available in 12, 16, 20, 25, 32, 40, 50, 63, 80 and 100mm bore sizes with the same mounting dimensions as the CQ2. The guide rod and plate allow work to be directly mounted. The CQM series offers 4 times the lateral load resistance of the CQ2K and non-rotating accuracy of ±0.2°.
Cualidades
Guide rod type compact cylinder
Bore sizes (mm): 40, 50, 63, 80, 100
Standard strokes (mm): 5 to 100
4 times the lateral load resistance of the CQ2K
Non-rotating accuracy 0.2 or less
Información técnica
Atributos
| Tipo | compact cylinder |
|---|---|
| Diámetro de cilindro | 80 mm |
| Carrera de cilindro | 60 mm |
| Temperatura mín. | -10 °C |
| Temperatura máx. | 70 °C |
Mostrar UNSPSC/ECL@SS/Customs
325,91 € Sin IVA
/ unidad
394,35 € IVA incluido
- Entrega estimada (15) días
