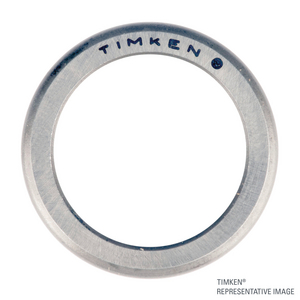

Rodamiento de rodillos cónicos Timken 493, Diámetro exterior: 136.525 mm | Anchura: 22.225 mm
Tapered Roller Bearings
Ver información técnicaReferencias
Timken:493
Rubix:500049300001
fabricante:100072576
EAN:0053893043500
Resumen técnico
| Diámetro interior | 85.725 mm |
|---|---|
| Diámetro exterior | 136.525 mm |
| Anchura | 22.225 mm |
Detalles de producto : 493
Timken is the recognized world leader in tapered roller bearings with the most extensive offering in the market. This is the basic and the most widely used type of tapered roller bearing. It consists of the inner-ring assembly and the outer ring. It is usually fitted as one of an opposing pair. During equipment assembly, single-row bearings can be “set” to the required clearance (endplay) or preload condition to optimize performance.
Cualidades
Single-row tapered roller bearings have positive roller alignment that ensures true rolling motion and generates a “seating force” that pushes the roller against the cone large rib. This seating force prevents the rollers from skewing off apex, thereby keeping them positively aligned and located against the cone large rib.
Aplicaciones
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Información técnica
Atributos
| Dimensiones logísticas (lar. x an. x al.) | 146x146x30 mm |
|---|---|
| Peso neto | 540 g |
| Dimensiones del embalaje (lar. x an. x al.) | 146,2532x146,2532x30,3276 mm |
| Peso con embalaje | 536,1 g |
| Diámetro interior | 85.725 mm |
| Diámetro exterior | 136.525 mm |
| Anchura | 22.225 mm |
| Holgura del rodamiento | cn |
| Peso | 1.5 kg |
| Serie | 495 |
| Anchura de rodamiento total | 30.163 mm |
| Carga estática básica, radial - C0r | 216000 N |
| Carga dinámica básica, radial - Cr | 154000 N |
Mostrar UNSPSC/ECL@SS/Customs
60,45 € Sin IVA
/ unidad
73,14 € IVA incluido
- Entrega estimada (15) días
