Rodamiento de rodillos cónicos Timken 48685-90021, Diámetro exterior: 200.025 mm | Diámetro interior: 142.875 mm | Anchura: 87.315 mm

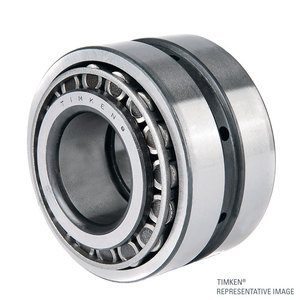

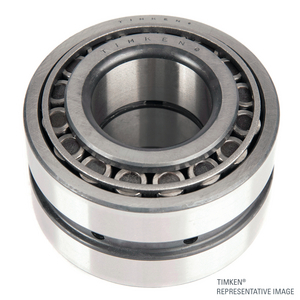

Tapered Roller Bearing Double Cup Assembly
Ver información técnicaReferencias
Timken:48685-90021
Rubix:798003926000
fabricante:100038885
EAN:0053893315218
Resumen técnico
| Diámetro interior | 142.875 mm |
|---|---|
| Diámetro exterior | 200.025 mm |
| Anchura | 87.315 mm |
Detalles de producto : 48685 ASSY 90021
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Cualidades
Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Aplicaciones
Heavy-duty gear drives; Various industrial configurations
Información técnica
Atributos
| Dimensiones logísticas (lar. x an. x al.) | 87,315x200,025x200,025 mm |
|---|---|
| Peso neto | 8115 g |
| Dimensiones del embalaje (lar. x an. x al.) | 146,05x222,25x222,25 mm |
| Peso con embalaje | 8114,8 g |
| Diámetro interior | 142.875 mm |
| Diámetro exterior | 200.025 mm |
| Anchura | 87.315 mm |
| Holgura del rodamiento | cn |
Mostrar UNSPSC/ECL@SS/Customs
2373,34 € Sin IVA
/ unidad
2871,74 € IVA incluido
- Entrega estimada (15) días
