Rodamiento de rodillos cónicos Timken HM746646-90030, Diámetro exterior: 355.6 mm | Diámetro interior: 228.6 mm | Anchura: 152.4 mm
Rodamiento de Rodillos Cónicos de Doble Hilera TDO
Ver información técnicaReferencias
Timken:HM746646-90030
Rubix:799066174000
fabricante:100113936
EAN:0053893679921
Resumen técnico
| Diámetro interior | 228.6 mm |
|---|---|
| Diámetro exterior | 355.6 mm |
| Anchura | 152.4 mm |
Detalles de producto : HM746646-20000 + HM746610CD-20024 + SPACER
With the ability to support high radial and axial loads, high-performance Timken double row tapered roller bearing assemblies are engineered to provide the greatest durability in the most compact space. Pre-adjusted spacer assemblies allow for faster installation by eliminating the bearing clearance adjustment procedure.
Cualidades
Engineered to deliver higher speeds, heavier loads and longer life.
Unrivaled technology and engineering support.

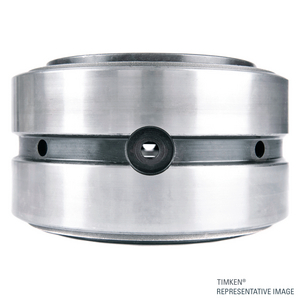

Two-Row Double-Outer race bearings (TDO) feature a double outer race (cup) and two single inner races (cones) .
Outer race features groove and lubrication holes in the outside diameter.
Most commonly sold with a spacer to control the axial internal clearance or bench end play (BEP) to eliminate the adjustment procedure.
Internal axial clearance is marked on the spacer for identification and reorder purposes.
Internal axial clearance is factory preset to create a matched bearing assembly (MBA).
Components cannot be mixed with other components from another bearing assembly.
Wide effective bearing spread that is ideal for applications in which overturning moments are a significant load component.
Can be used in fixed positions or allowed to float in the housing bore
Unrivaled technology and engineering support.
Two-Row Double-Outer race bearings (TDO) feature a double outer race (cup) and two single inner races (cones) .
Outer race features groove and lubrication holes in the outside diameter.
Most commonly sold with a spacer to control the axial internal clearance or bench end play (BEP) to eliminate the adjustment procedure.
Internal axial clearance is marked on the spacer for identification and reorder purposes.
Internal axial clearance is factory preset to create a matched bearing assembly (MBA).
Components cannot be mixed with other components from another bearing assembly.
Wide effective bearing spread that is ideal for applications in which overturning moments are a significant load component.
Can be used in fixed positions or allowed to float in the housing bore
Aplicaciones
Heavy-duty gear drives / Various industrial configurations
Información técnica
Atributos
| Peso con embalaje | 49539,5 g |
|---|---|
| Diámetro interior | 228.6 mm |
| Diámetro exterior | 355.6 mm |
| Anchura | 152.4 mm |
| Holgura del rodamiento | cn |
Mostrar UNSPSC/ECL@SS/Customs
34.736,75 € Sin IVA
/ unidad
42.031,47 € IVA incluido
- Entrega estimada (15) días
