Referencias
SMC:KQ2L12-03A
Rubix:798960859000
fabricante:00986773
Resumen técnico
| Material | c3604, pbt, pp, stainless steel 303 |
|---|---|
| Conexión 1 | 12 mm |
Documentos

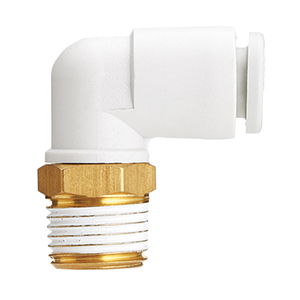

Detalles de producto : KQ2L12-03A
One-touch fitting, a general purpose PBT material
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Applicable tubing from Ø 2 to Ø 16
Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
Operating pressure range: -100 kPa to 1 MPa
Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
With sealant.
Cualidades
•Accepts nylon and urethane tubes
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Maximum vacuum pressure of 1.0MPa
Applicable for both vacuum and positive pressure applications
Release collar allows easy removal of tubing without damaging the tube
Maximum vacuum pressure of 1.0MPa
Información técnica
Atributos
| Material | c3604, pbt, pp, stainless steel 303 |
|---|---|
| Conexión 1 | 12 mm |
| Perfil | kq2 |
| Conexión 2 | r 3/8 in |
| Temperatura máx. | 60 °C |
Mostrar UNSPSC/ECL@SS/Customs
6,52 € Sin IVA
/ unidad
7,89 € IVA incluido
- Entrega estimada (15) días
