Referencias
SMC:CXSJL32-75
Rubix:799241955000
fabricante:CXSJL32-75
Resumen técnico
| Diámetro de cilindro | 32 mm |
|---|---|
| Carrera de cilindro | 75 mm |
| Tipo | dual rod cylinder |
Documentos

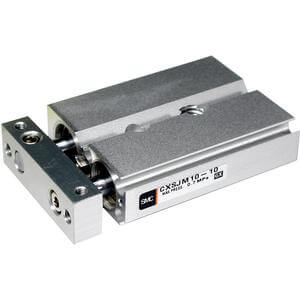

Detalles de producto : CXSJL32-75
Series CXS is available in six bore sizes and stroke lengths up to 100mm. This series is very compact and has a very accurate non-rotating specification. It is suited for accurate pick-and-place applications or light duty material handling. The CXS can be used with either reed or solid state switches. Available in clean room versions.
Cualidades
Dual rod cylinder, compact type
Slide bearing or ball bushing bearing
Bore size (mm): 6, 10, 15, 20, 25, 32
Standard strokes (mm): 10, 20, 30, 40, 50, 75, 100
Auto switches available
Made to Order additionally released.
Información técnica
Atributos
| Diámetro de cilindro | 32 mm |
|---|---|
| Carrera de cilindro | 75 mm |
| Tipo | dual rod cylinder |
| Temperatura mín. | -10 °C |
| Temperatura máx. | 60 °C |
Mostrar UNSPSC/ECL@SS/Customs
505,23 € Sin IVA
/ unidad
611,33 € IVA incluido
- Entrega estimada (15) días
